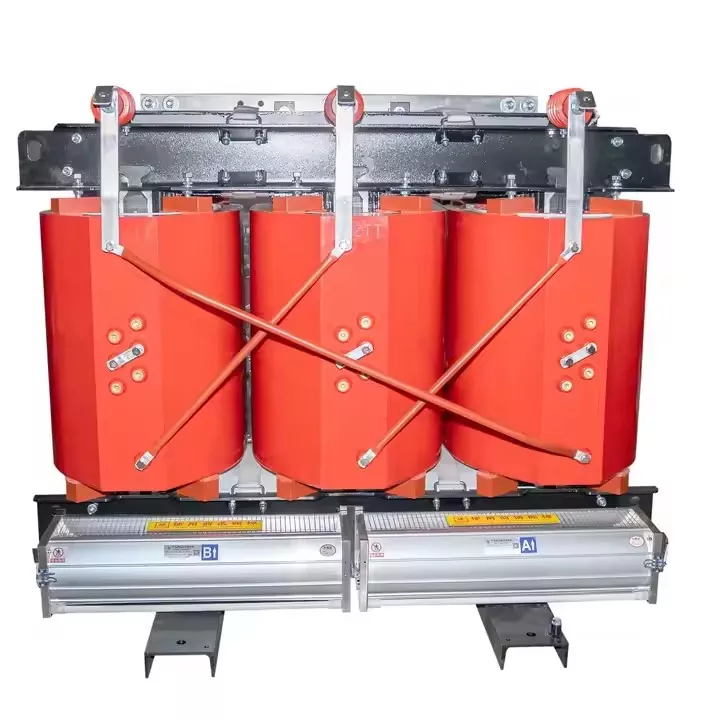

UGAO dry-type three-phase distribution transformer is a high-quality power distribution solution with excellent performance, using high-quality silicon steel core material, stable output, and high fire resistance. As a leading transformer manufacturer in China, LUGAO's transformers meet the power distribution needs of various industries and are manufactured strictly in accordance with international certification standards. LUGAO's transformers are favored by customers for their high quality and competitive prices.
LUGAO dry-type three-phase distribution transformer adopts intelligent air cooling design to efficiently dissipate heat and ensure efficient and safe power distribution. This dry-type transformer has excellent fire resistance to eliminate the risk of explosion and low maintenance cost, which is the best choice for indoor installation and areas with strict safety standards. LUGAO dry-type transformer adopts high-quality epoxy resin insulation, provides strong electrical fault protection, and ensures safe performance.
The transformer adopts high-precision winding design and three-phase balanced power supply to ensure stable and balanced power output and realize intelligent voltage regulation. Advanced insulation and cooling technology reduces loss costs and is highly efficient and energy-saving. LUGAO dry-type three-phase distribution transformers are widely used in various industries and various important places, playing a vital role in the entire distribution network.
|
Rated capacit y(kVA) |
Voltage group |
Impedanc evoltage (%) |
No- load loss (W) |
Load loss 120° C(W) |
No- load curre n(W) |
Sound level (dB) |
Weight (kg) |
||
| HV (kV) |
Tap range |
LV (kV) | |||||||
| 30 |
10 11 10.5 6.6 6.3 6 |
+/-2x2.5 %+/-5% |
0.4 | 4 | 190 | 710 | 2.0 | 44 | 220 |
| 50 | 270 | 1000 | 2.0 | 44 | 320 | ||||
| 80 | 370 | 1380 | 1.5 | 45 | 460 | ||||
| 100 | 400 | 1570 | 1.5 | 45 | 580 | ||||
| 125 | 470 | 1850 | 1.3 | 46 | 750 | ||||
| 160 | 540 | 2130 | 1.3 | 46 | 780 | ||||
| 200 | 620 | 2530 | 1.1 | 47 | 850 | ||||
| 250 | 720 | 2760 | 1.1 | 48 | 1030 | ||||
| 315 | 880 | 3470 | 1.0 | 48 | 1060 | ||||
| 400 | 980 | 3990 | 1.0 | 49 | 1400 | ||||
| 500 | 1160 | 4880 | 1.0 | 49 | 1550 | ||||
| 630 |
134 0 |
5880 | 0.85 | 49 | 1820 | ||||
| 630 | 6 | 1300 | 5960 | 0.85 | 50 | 1850 | |||
| 800 | 1520 | 6960 | 0.85 | 51 | 2150 | ||||
| 1000 | 1770 | 8130 | 0.85 | 52 | 2550 | ||||
| 1250 |
209 0 |
9690 | 0.85 | 53 | 3020 | ||||
| 1600 |
245 0 |
11730 | 0.85 | 54 | 4500 | ||||
| 2000 |
305 。 |
14450 | 0.7 | 55 | 5300 | ||||
| 2500 |
360 0 |
17170 | 0.7 | 56 | 6200 | ||||
1.The height above the sea level is below 1000m.
2.Highest air temperature +40ºC
3.Highest daily average air temperature +30ºC
4.Highest annual average air temperature+20v
5.Lowest outdoor air temperature-25ºC
6. Installation location: suitable for installation in areas free from fire or explosion hazards, significant pollution, chemical corrosion, or excessive vibration, whether indoors or outdoors.
1.Operate within specified limits: +40ºC (highest air temperature), +30ºC (highest daily average), and +20ºC (highest annual average).
2.Suitable for Dry type transformers at altitudes below 1000m. Consider extremes: -25ºC (lowest outdoor temperature).
Ventilation:
3.Adequate airflow is essential for Dry type transformers to dissipate heat.
4.Dry type transformers are resistant to moisture; protect from prolonged exposure to high humidity.
5.Dry type transformers should operate within specified load and voltage limits.
6.Implement protection measures against harmonics and voltage fluctuations.
7.Install Dry type transformers in areas free from fire/explosion hazards, pollution, corrosion, or excessive vibration, whether indoors or outdoors.
8.Adhere to regular maintenance practices per the manufacturer's recommendations.
9.Dry type transformers should operate within their specified overload capacity.
10.Maintain low noise levels in Dry type transformers.
