Oil lmmersed Power Distribution Transformer

LUGAO S13 oil-immersed distribution transformer is an energy-saving distribution equipment with advanced cutting-edge energy efficiency technology. It is suitable for industrial, commercial and residential power distribution, has strong short-circuit resistance and meets environmental protection requirements. Lugao adopts innovative S13 core technology and optimized oil-immersed cooling to make the transformer perform better, reduce energy consumption and last longer. Lugao is a trusted global high-quality transformer supplier, providing competitive prices and differentiated services to global customers.

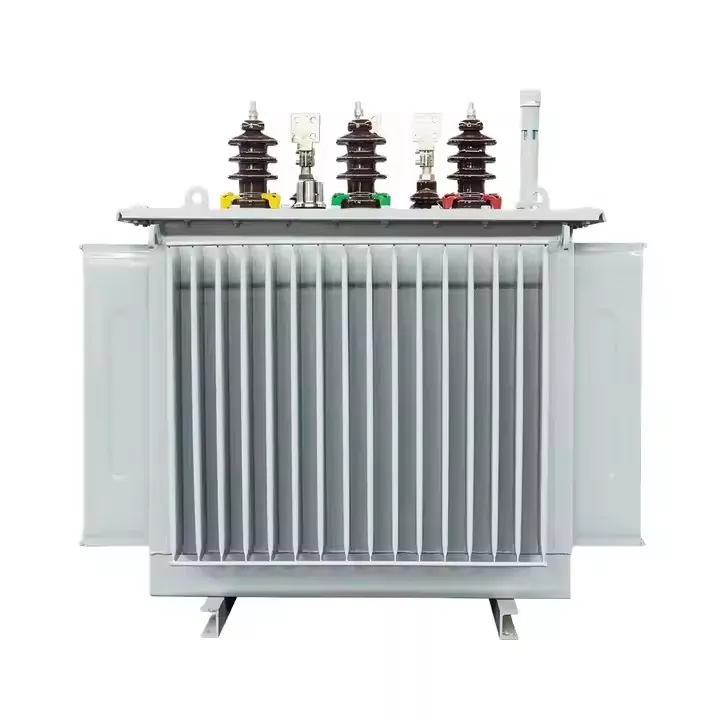

LUGAO S13 Oil lmmersed Power Distribution Transformer Introduction

LUGAO S13 oil-immersed distribution transformer adopts no-load loss optimization technology, which can significantly reduce no-load losses and improve the overall efficiency of the transformer. The transformer adopts an optimized oil-immersed cooling system to delay oil aging, stable operation and long service life. The environmentally friendly design principle is an ideal choice for projects focusing on energy efficiency and sustainability, with a high recyclability rate.

The S13 transformer is made of high-purity copper wire windings and advanced insulation materials. Its load loss is better than the national standard and can match the scene requirements of industrial power distribution and commercial power grids. Lugao can provide customized solutions according to the specific needs of customers in different countries to ensure that the transformer can achieve the best use effect in various operating environments.

S13 Oil lmmersed Power Distribution Transformer Parameter

S13 Oil lmmersed Power Distribution Transformer Operating Environment

1. High ambient temperature: +40℃

2. Low ambient temperature: -25℃

3. Altitude: <4000m

4. Monthly average relative humidity: 80% (25℃)

5. Installation location: Install in a place free of fire, explosion hazard, severe pollution, chemical corrosion and severe vibration, indoor or outdoor

S13 Oil lmmersed Power Distribution Transformer Characteristics

1. Good Economical Performance;The no-load loss for S13 series products decreased by 10.3% averagely and the no-load current decreased by 25% than S11 series.

2. Long Service Life: Transformer tank adopts hermetical structure. The covers between tanks can be connected by bolts and welded firmly. the transformer oil won't contact with air, so that extend the service life effectively.

3. High Operation Reliability: Improve the relevant sealing parts for the tank, increase the reliability and advance the technical level to ensure the reliability of the seal.

4. Small Installation Area: S13-M series transformer tank uses the corrugated plate radiator. When the oil temperature changes, the corrugated plate will proceed thermal expansion, which can replace the role of the oil conservator. the corrugated plate tank has beautiful appearance, less occupied area.

5. Low Noise: The Oil immersed distribution transformer core is stacked by imported high-quality cold-rolled silicon steel sheet, which reduces no-load current greatly, and makes the core bound to ensure compactness of the core and reduce noise.
