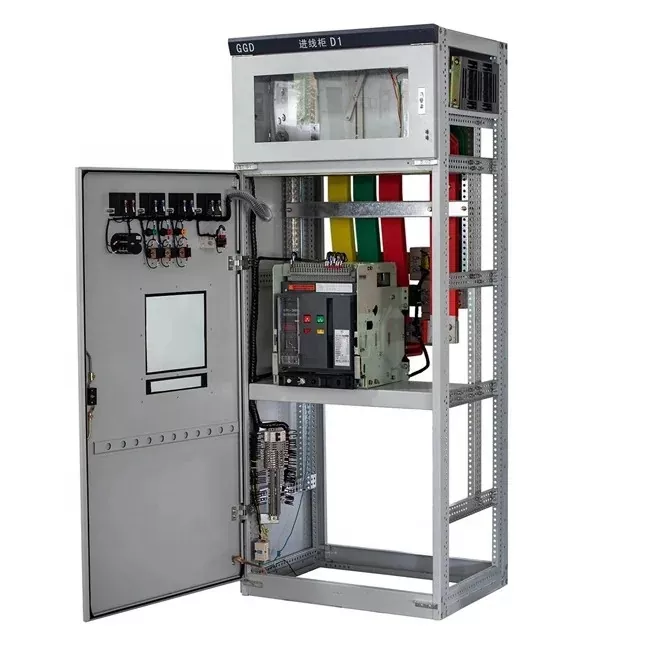

Our products are widely applied in urban grid modernization, industrial complexes, renewable energy projects, and smart infrastructure, compliance-certified to global standards such as IEC, GB, and ANSI. Low Voltage Switchgear is mainly used in power systems with voltages less than or equal to 1000V AC or 1500V DC, serving to distribute, protect, and monitor electrical energy. The mainstream cabinet types include fixed, drawer, and hybrid. Low Voltage Switchgear is flexible in combination, has high segmenting capacity, and can be used in substations, commercial buildings, and residential areas.
1. Multiple Protection
The circuit breaker can instantly cut off the short-circuit power supply, and the interlocking system prevents accidents caused by misoperation. The fully insulated design has a high voltage withstand strength.
2. Flexible Combination
Circuits can be added or removed as needed, and the structure can be expanded at will. With a unified design, it can be quickly assembled and put into use.
3. Easy Maintenance
In case of a fault, the drawer-style design allows for quick removal and inspection without needing to shut down the entire system. The display interface enables intuitive identification of the fault location and precise diagnosis.
4. Energy Efficiency
Optimized busbar layout reduces heat generation and energy waste, lowering losses. Dynamic reactive power compensation effectively saves energy.
After installation, the product must undergo the following inspections and tests before being put into operation.
• Inspect the cabinet surface paint for peeling, and ensure the interior is dry and clean.
• Verify that the operating mechanisms of electrical components are flexible, with no sticking or excessive operating force.
• Confirm that the main electrical components operate reliably and accurately, and that auxiliary contacts function reliably and accurately.
• Check that instrument indications match the transformer ratio and polarity.
• Verify that busbar connections are secure, and that insulation supports, mounting hardware, and accessories are installed firmly and reliably.
• Confirm that auxiliary contacts meet requirements, fuse elements are of the correct specification, relay settings comply with design requirements, and operations are accurate.
• Ensure that circuit connections conform to the electrical schematic diagram.
• Verify that the protective circuit system meets requirements.
• Measure insulation resistance using a 500-volt megohmmeter; the value must not be less than 10 megohms.
