Dry Type Silicon Steel Step Down Transformer

Dry Type Silicon Steel Step Down Transformer

Lugao Power Co., Ltd's Distribution Transformer have been successfully sold in many countries. With affordable prices and excellent quality, LUGAO has established a deep partnership with its customers. LUGAO's advanced production lines can quickly deliver the transformers that customers need, while maintaining sufficient inventory for customers to choose from. Professional engineers are available online to answer customer questions and provide suitable solutions.

LUGAO's Dry Type Transformer utilizes the principle of electromagnetic induction to convert voltage levels. During operation, when the primary winding is energized, it generates alternating magnetic flux, which is then coupled through the core to the secondary winding, inducing an electromotive force. Silicon Steel Transformers use epoxy resin or silicone rubber for insulation. These materials have self-extinguishing properties and do not cause issues associated with oil leaks. During casting, the pre-wound coils are placed into a designed mold, and epoxy resin mixture is poured in, followed by heating and curing. The overall mechanical strength is high, effectively isolating external dust and moisture while protecting internal metal components.


To reduce losses, high-quality silicon steel sheets and windings are selected as materials, effectively reducing noise during operation without affecting the social environment. The housing of the Amorphous Alloy Transformer is made of materials with extremely high protection ratings, ensuring reliable operation even under harsh weather conditions. Voltage ratings can be customized according to customer requirements, such as AN or AF. LUGAO's products have passed international standards, ensuring quality and reliability.

Parameter

Dry Type Silicon Steel Step Down Transformer

Capacit
y

(KVA)
Voltage(KV) Loss(W)

No
load
curren
t
Noise
dB
(A)
Dimension(mm) Weight(KG)
H.V L.V No
load
On
load

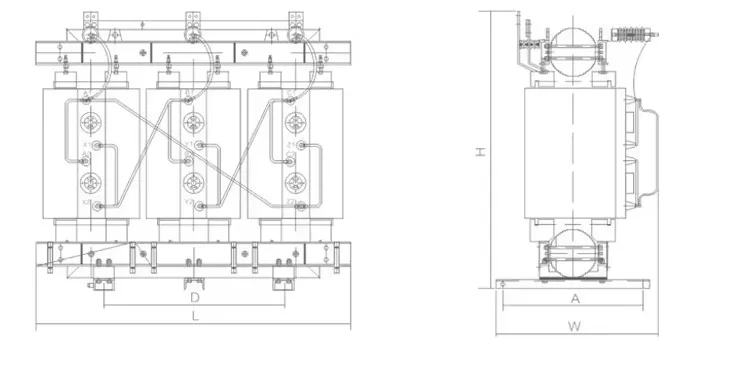

L*W*H
30

36.6
10
10.5
11
13.2


0.4

or
other
S
190  700  2.2  43  680*400*686 300
50  270  990  2.0  43  690*400*686 360
80  360  1370  1.8  43  730*450*796 500
100  400  1570  1.8  44  730*500*816 600
125  470  1840  1.6  44  780*600*950 700
160  540  2120  1.4  44  950*650*1124 850
200  620  2520  1.4  45  990*650*1164 950
250  720  2750  1.4  45  1020*650*1207 1100
315  880  3460  1.2  47  1050*750*1320 1250
400  970  3980  1.2  48  1100*800*1450 1550
500  1160  4880  1.2  48  1140*800*1430 1850
630  1340  5870  50  1250*800*1500 1900
800  1520  6950  52  1330*800*1540 2200
1000  1760  8120  0.8  54  1400*960*1640 2750
1250  2090  9690  0.8  55  1450*960*1840 4000
2000  3320  14450  0.6  57  1680*960*1930 4800
2500  4000  17170  0.6  57  1720*1010*1950 5500

Operating Environment

1. The standard operating temperature range is -25°C to +40°C. If the temperature exceeds this range, please consult with the LUGAO team for a solution.

2. The standard operating humidity should be ≤90%. In high-humidity environments, better protective materials should be selected.

3. The standard altitude range is ≤1000 meters. If the altitude exceeds this range, please consult with the LUGAO team for a special design.

4. Ensure sufficient space is provided during installation to allow the transformer to dissipate heat. Do not tilt the equipment.

5. Keep away from areas with strong electromagnetic interference and avoid installation in environments containing corrosive gases.

Features

1. The epoxy resin cast windings offer excellent short-circuit withstand capability and insulation performance.

2. The specially designed equipment produces minimal vibration and noise.

3. There is no risk of fire or oil leakage, ensuring exceptional safety performance.

4. High protection rating, suitable for both indoor and outdoor installation.

5. The housing material is more environmentally friendly with a high recycling rate.

6. All transformers produced by LUGAO comply with international standards, ensuring product quality.

Our Factory

10KV 220V Amorphous Alloy Dry type Transformer10KV 220V Amorphous Alloy Dry type Transformer

Transportation

10KV 220V Amorphous Alloy Dry type Transformer
