500kva 10kv Low Loss Three Phase Dry Type Transformer

The 500kva 10kv Low Loss Three Phase Dry Type Transformer produced by Lugao Power Co., Ltd is designed for efficient power distribution. Designed with industry-leading technology, the transformer significantly reduces no-load and load losses, thereby reducing operating costs. The dry design requires no insulating oil, ensuring minimal maintenance and reducing environmental impact. LUGAO's transformers are certified by international certifications such as ISO and CE, and the quality of the product is guaranteed.

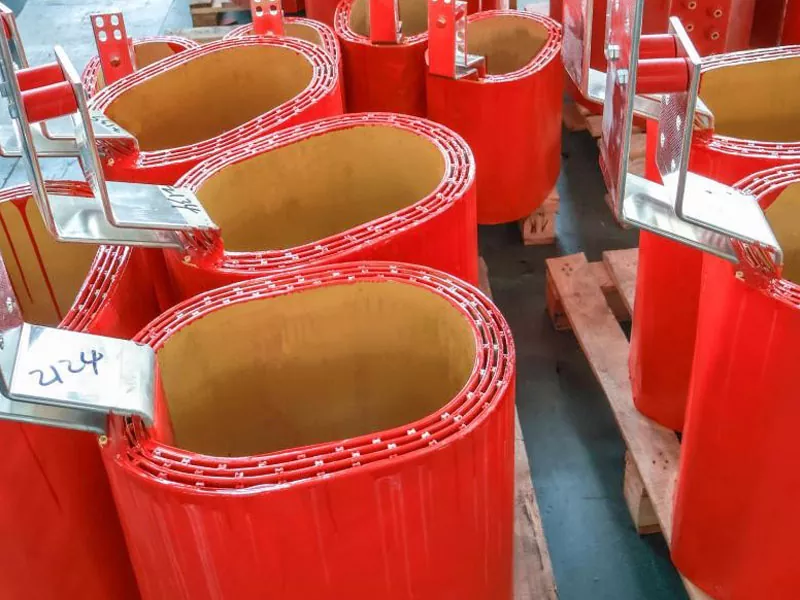

The transformer uses a vacuum encapsulated epoxy resin insulation system. The transformer is ideal for a variety of applications, including commercial, industrial and utility grids, providing safe and stable power.

LUGAO 500kva 10kv low loss three phase dry type transformer Introduction

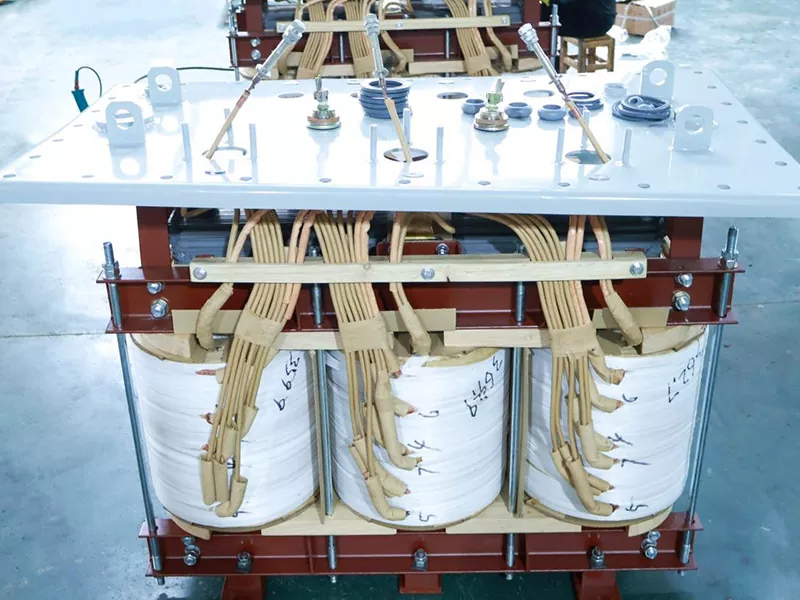

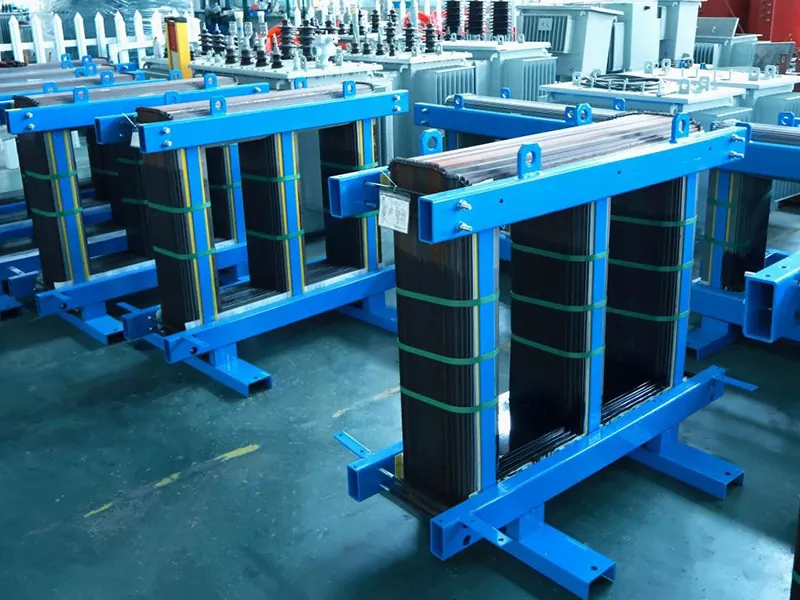

The 500kVA 10kV low loss three phase dry type transformer produced by Lugao Power Co., Ltd provides a reliable solution for modern power distribution needs. The SCB11 series uses a premium laminated core and high-quality copper windings, which not only reduces energy losses but also improves transformer performance. The transformer is epoxy vacuum encapsulated to provide strong protection against dust, moisture and other environmental contaminants, making it ideal for both indoor and outdoor installations.

The epoxy encapsulation also makes the transformer flame retardant and self-extinguishing, which improves safety. The transformer is designed with natural air (AN) cooling, which ensures efficient heat dissipation without the need for additional cooling mechanisms, helping to reduce maintenance costs. The 500kva 10kv low loss three phase dry type transformer is easy to install and has low maintenance costs, making it ideal for a variety of power distribution applications, including industrial facilities, commercial complexes and public infrastructure projects.

LUGAO 500kva 10kv low loss three phase dry type transformer Parameter

LUGAO 500kva 10kv low loss three phase dry type transformer Operating Environment

1.The height above the sea level is below 1000m.

2.Highest air temperature +40ºC

3.Highest daily average air temperature +30ºC

4.Highest annual average air temperature+20v

5.Lowest outdoor air temperature-25ºC

6. Installation location: suitable for installation in areas free from fire or explosion hazards, significant pollution, chemical corrosion, or excessive vibration, whether indoors or outdoors.

LUGAO 500kva 10kv low loss three phase dry type transformer Characteristics

1.Operate within specified limits: +40ºC (highest air temperature), +30ºC (highest daily average), and +20ºC (highest annual average).

2.Suitable for Dry type transformers at altitudes below 1000m. Consider extremes: -25ºC (lowest outdoor temperature).

Ventilation:

3.Adequate airflow is essential for Dry type transformers to dissipate heat.

4.Dry type transformers are resistant to moisture; protect from prolonged exposure to high humidity.

5.Dry type transformers should operate within specified load and voltage limits.

6.Implement protection measures against harmonics and voltage fluctuations.

7.Install Dry type transformers in areas free from fire/explosion hazards, pollution, corrosion, or excessive vibration, whether indoors or outdoors.

8.Adhere to regular maintenance practices per the manufacturer's recommendations.

9.Dry type transformers should operate within their specified overload capacity.

10.Maintain low noise levels in Dry type transformers.

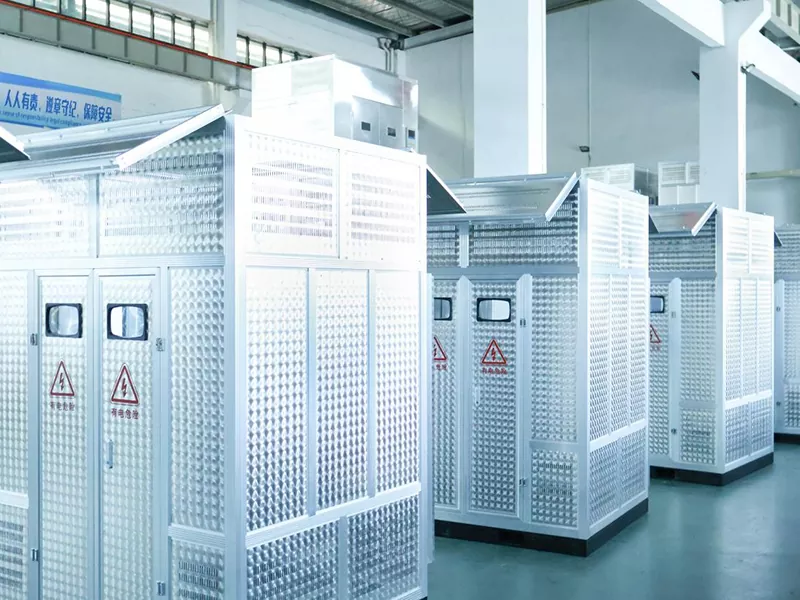

Our Factory
