800kVA 10kv Dry Type Distribution Transformer

The Scb11 800kVA 10kv Dry Type Distribution Transformer manufactured by Lugao Power Co., Ltd. is designed to provide efficient power distribution while enhancing safety and environmental sustainability. The SCB11 series uses advanced vacuum casting coil winding technology to ensure minimal losses and optimal energy efficiency. The transformer is insulated with high-quality epoxy resin, which is flame retardant, self-extinguishing and has excellent moisture resistance, making it ideal for installation in environments with high safety standards.

LUGAO Scb11 800kVA 10kv Dry Type Distribution Transformer Introduction

The SCB11 800kVA 10kV Dry Type Distribution Transformer manufactured by Lugao Power Co., Ltd. is a reliable and safe solution to meet modern power distribution needs. The SCB11 series uses advanced insulation and vacuum pressure impregnation (VPI) technology to provide excellent dielectric properties, better thermal stability and superior mechanical strength. The transformer is designed to reduce no-load losses, improve energy efficiency and ensure consistent voltage output for a wide range of distribution applications.

The epoxy encapsulated windings are flame retardant and self-extinguishing, making the transformer safe for use in densely populated areas or where fire protection is required. The SCB11 transformer also features an advanced natural air (AN) cooling system that ensures stable performance without the need for external cooling fans, helping to reduce maintenance and operating costs. With its rugged construction and easy installation, the Scb11 800kVA 10kv Dry Type Distribution Transformer is suitable for a wide range of applications, including industrial facilities, commercial complexes, power stations and infrastructure projects.

LUGAO Scb11 800kVA 10kv Dry Type Distribution Transformer Parameter

LUGAO Scb11 800kVA 10kv Dry Type Distribution Transformer Operating Environment

1.The height above the sea level is below 1000m.

2.Highest air temperature +40ºC

3.Highest daily average air temperature +30ºC

4.Highest annual average air temperature+20v

5.Lowest outdoor air temperature-25ºC

6. Installation location: suitable for installation in areas free from fire or explosion hazards, significant pollution, chemical corrosion, or excessive vibration, whether indoors or outdoors.

LUGAO Scb11 800kVA 10kv Dry Type Distribution Transformer Characteristics

1.Operate within specified limits: +40ºC (highest air temperature), +30ºC (highest daily average), and +20ºC (highest annual average).

2.Suitable for Dry type transformers at altitudes below 1000m. Consider extremes: -25ºC (lowest outdoor temperature).

Ventilation:

3.Adequate airflow is essential for Dry type transformers to dissipate heat.

4.Dry type transformers are resistant to moisture; protect from prolonged exposure to high humidity.

5.Dry type transformers should operate within specified load and voltage limits.

6.Implement protection measures against harmonics and voltage fluctuations.

7.Install Dry type transformers in areas free from fire/explosion hazards, pollution, corrosion, or excessive vibration, whether indoors or outdoors.

8.Adhere to regular maintenance practices per the manufacturer's recommendations.

9.Dry type transformers should operate within their specified overload capacity.

10.Maintain low noise levels in Dry type transformers.

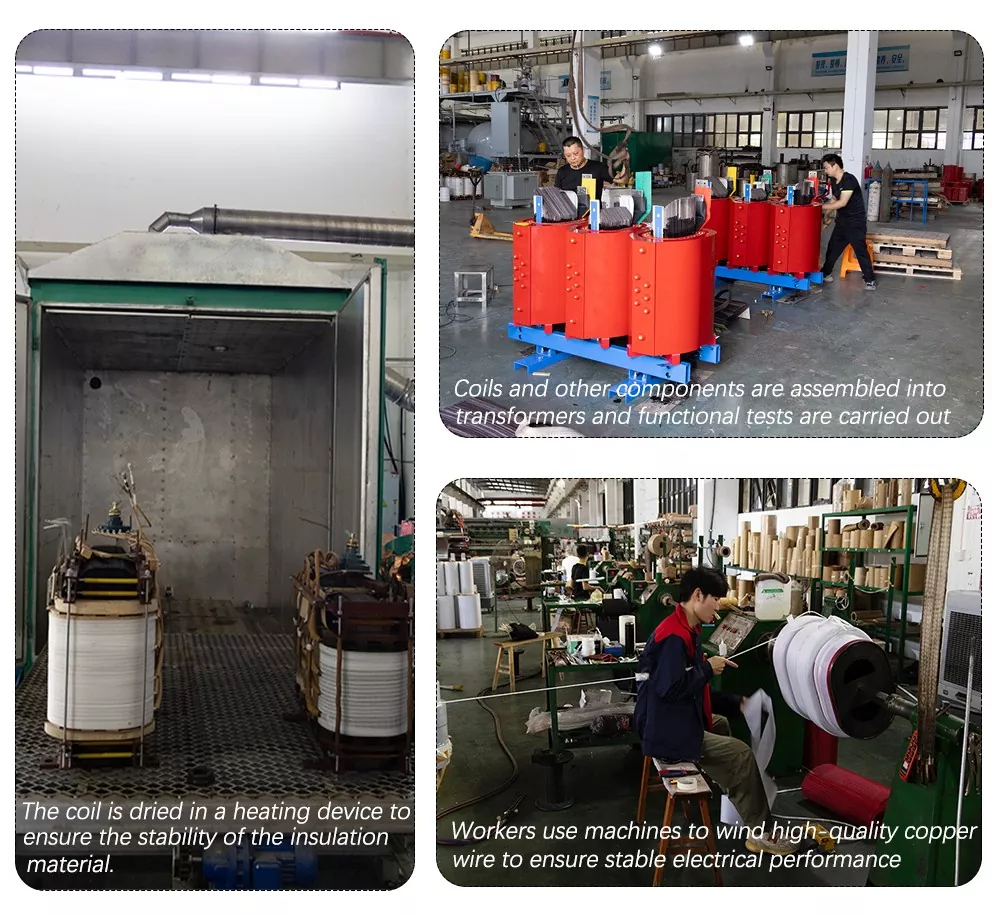

Our Factory
