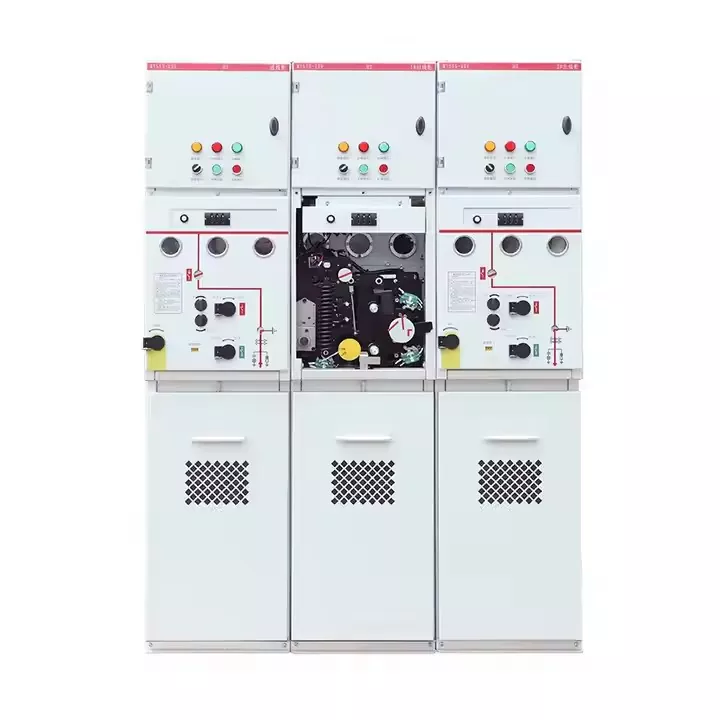

RUM Indoor MV and HV SF6 Gas Insulated Switchgear

RUM Indoor MV and HV SF6 Gas Insulated Switchgear from Lugao Power Co., Ltd. is designed for modern power distribution applications, providing reliable operation and advanced insulation technology. The switchgear is compact in size, insulated with SF6 gas, and has a rugged structure, ensuring safe and efficient performance even under harsh conditions. RUM Indoor MV&HV SF6 Gas Insulated Switchgear complies with multiple international standards and is ideal for a wide range of applications.

LUGAO RUM Indoor Medium and High Voltage SF6 Gas Insulated Switchgear Introduction

RUM Indoor MV&HV SF6 Gas Insulated Switchgear from Lugao Power Co., Ltd. is an internationally certified product. It adopts a fully sealed design, filled with SF6 gas as the insulating medium, which is completely isolated from the external environment, ensuring high reliability and stability of the equipment. The modular design ensures easy installation and maintenance, while its durability supports long-lasting reliability. With a space-saving design and advanced fault detection system, the switchgear is suitable for critical industrial and utility applications.

The RUM Indoor MV&HV SF6 Gas Insulated Switchgear produced by Lugao Power Co., Ltd. has intelligent and automated functions and can be remotely monitored and controlled, which reduces operational difficulty and improves grid operation efficiency.

LUGAO RUM Indoor Medium and High Voltage SF6 Gas Insulated Switchgear Parameter

LUGAO RUM Indoor Medium and High Voltage SF6 Gas Insulated Switchgear  Operating Environment

1.Ambient temperature: -40ºC~+45ºC;

2.Relative humidity: daily mean not over 95%, monthly mean not over 90%;

3.Altitude: not exceed 4000m;

4.The installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.

LUGAO RUM Indoor Medium and High Voltage SF6 Gas Insulated Switchgear  Features

The HXGN17 series box-type fixed metal-enclosed switchgear represents a significant advancement in high voltage power distribution systems.  It has been completely redesigned with a focus on enhancing insulation and protection levels compared to traditional handcart switchgear and GG-1 (A) F type switchgear. Noteworthy improvements include achieving higher insulation and protection levels without the use of interphase structures, relative clapboards, or insulation gases in the internal components.  The secondary circuit has been streamlined, eliminating the need for secondary plugs.

Designed for application in 7.240.5kV electric power distribution systems, this switchgear plays a crucial role in the acceptance and distribution of high voltage power equipment.  Emphasizing safety, it complies with the "five prevention" requirements and meets the IEC298 standards for "340.5kV AC metal closed switch."  Additionally, it aligns with internationally recognized benchmarks such as IEC62271-200 and IEC62271-100, ensuring its reliability and adherence to global standards.

Transportation
